Features and technical specifications:
Wide Driving Beam with a 40° wide light spread (compared to 20° for Driving Beam)Strobe light with five different flash patterns, including one R65-approved.Selectable position light with dynamic activation (yellow-orange or xenon white, connect the color of your choice)Range in E-approved mode: 359 m (1 lux)Range in Powerboost mode: 677 m (1 lux)E-marked: ECE R112 (Ref. 30), R7 (White position light) – Read more about UNECE regulations hereEMC certified: ECE R10 (does not interfere with radio)E-approved mode: 2 640 lumens (theoretical), 2 112 lumens (actual)Powerboost mode: 15 000 lumens (theoretical), 11 000 lumens (actual)Neutral white light: 5000KETM (Electronic Thermal Management): Adjusts diode power based on temperature for optimal lifespanSide-reflecting optical systemPressure equalization membraneAluminum heat sinkAdjustable stainless steel mountPolycarbonate lens36-month warrantyTechnical data:
180W (4 x 20W Cree LED + 4 x 10W Cree LED), strobe lights 12W (4 x 3W LED)Nominal Power: 154W (Powerboost)IP69K (water and dust proof) Cable with 6-pin DT ConnectorVoltage: 9-36 VLoad in E-Approved Mode: 2,2A @ 12V and 1,1A @ 24V (high beam only, no position light)Load in High Beam Powerboost Mode: 12,6A @ 12V and 5,6A @ 24V (high beam only, no position light)
Dimensions & Weight:
Width: 225 mmHeight: 223 mm (incl. bracket)Depth: 86 mmWeight: 2,23 kgIncluded:

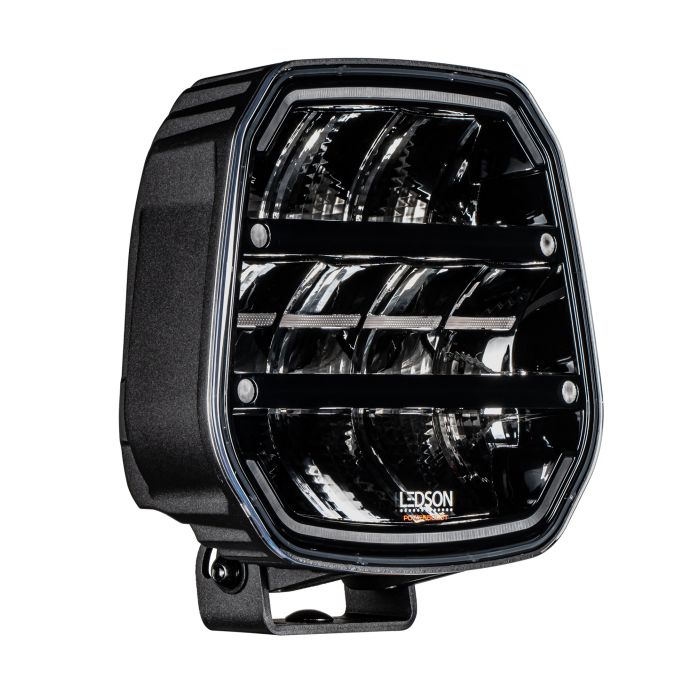

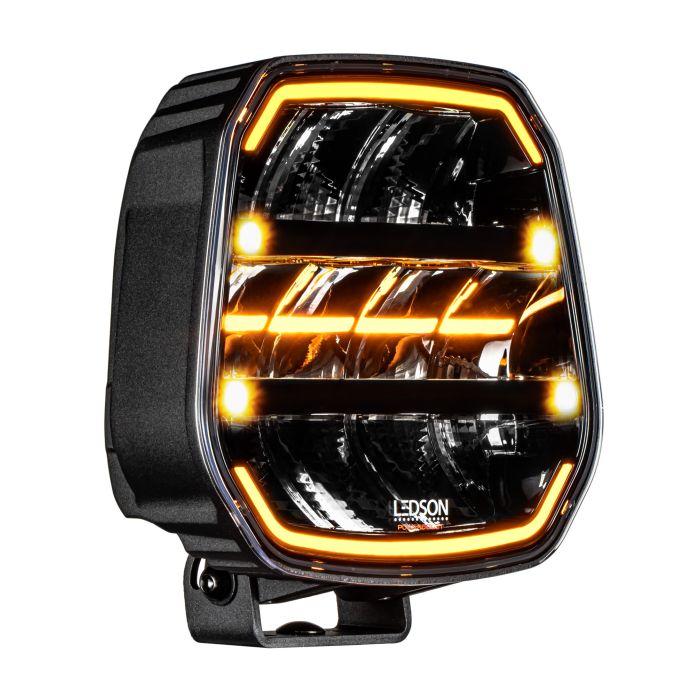

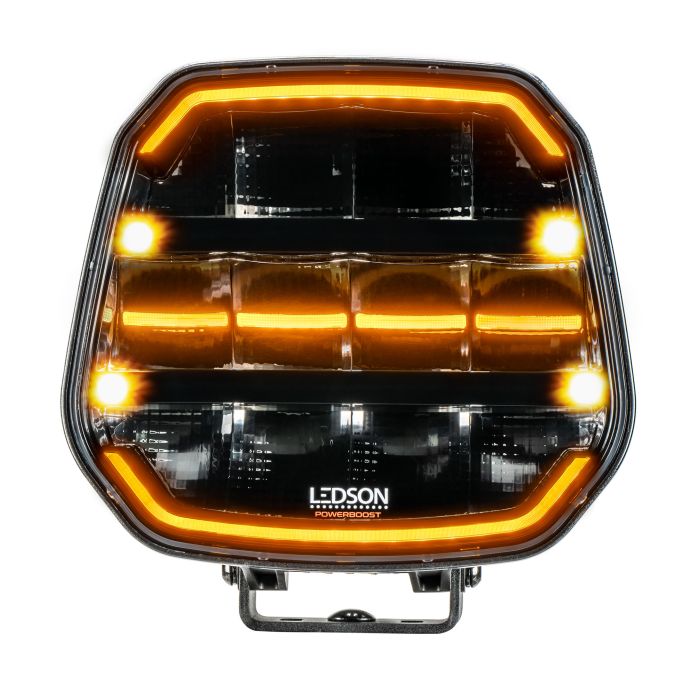

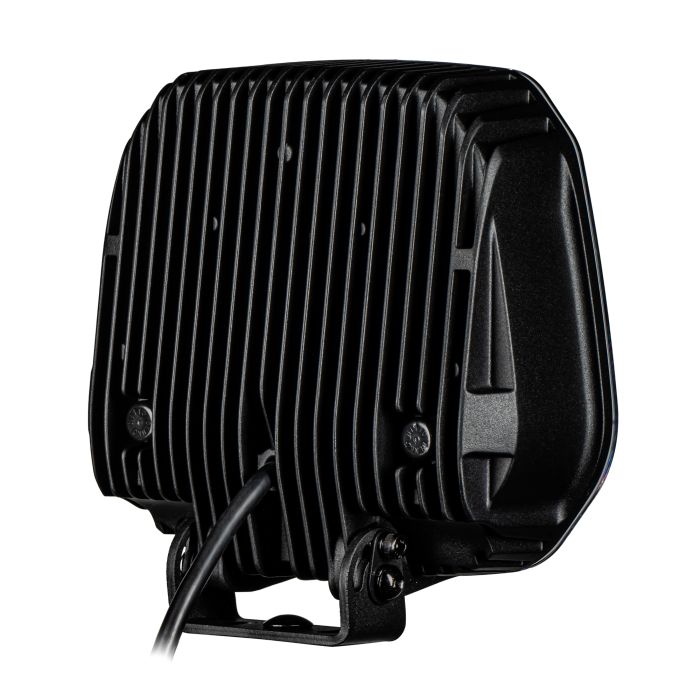

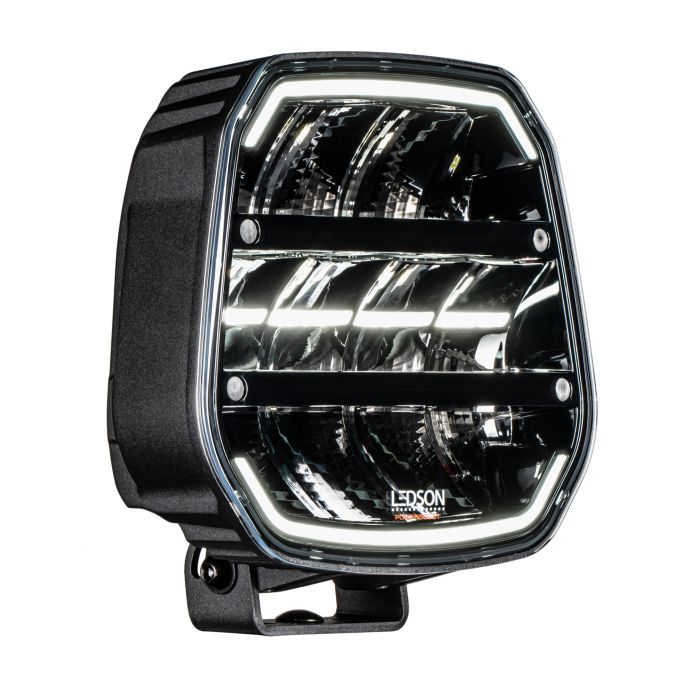

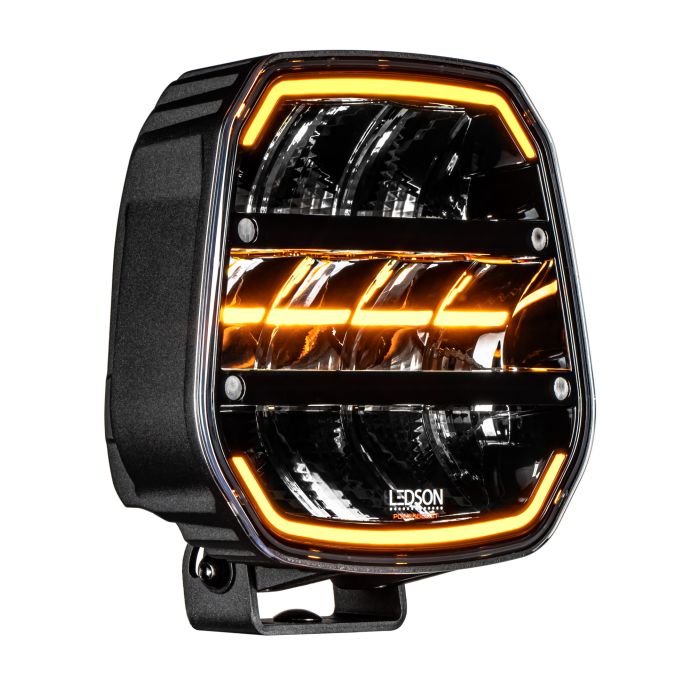

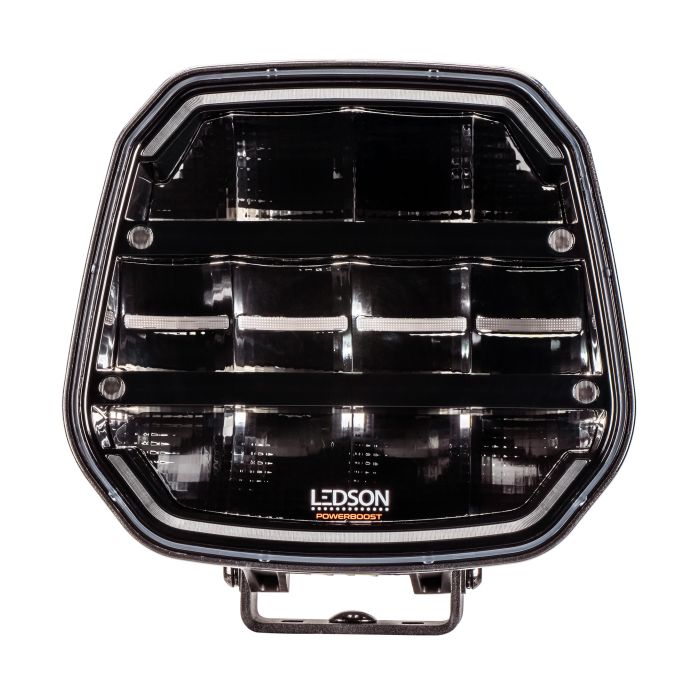

One Ledson Epix9+ Strobe LED auxiliary light 9″Mounting bracket, bolts, and screws for single or dual mounting points
